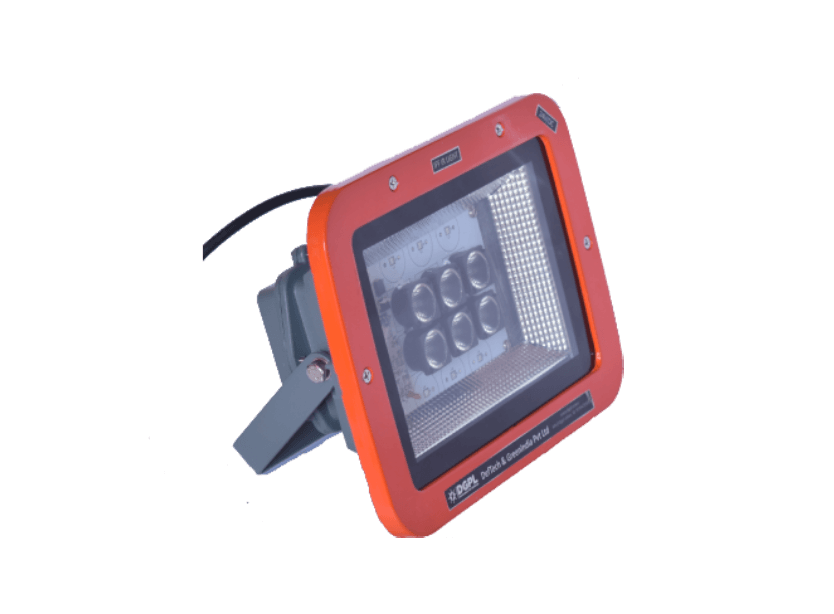

Overview

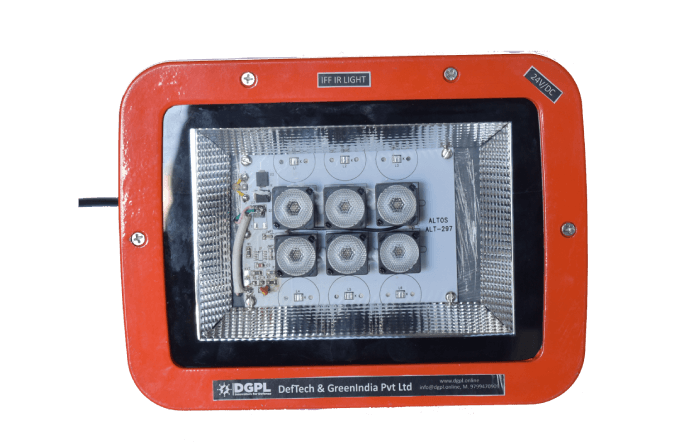

Despite their compact size, Our infrared LED lights is one of the most powerful tactical lights on the market. Whether you're looking for the long range and increased detail of an 850nm system or the stealth of 940nm.

we have the infrared lighting options for you. Some of our LED models also have an option that allows you to reduce the light's already low visible signature in low mode or switch to high for driving at higher speeds.

Technical specification

Download Specification
Model Number Wattage DEFTECH/VIS-IFF/IR3-F/S-1/2019 3.0W
Power Efficiency Source of Light 85% Solid State LED
IR SPECTRUM Light Distribution Beam pattern Efficiency 850nm, Dominant Directional, Up to 120 Degrees 80%
Safety Standards The Drive Ckt. Complies to CE norms for Harmonic Distortion & non emission of EMI radiation. It complies to IEC 60573 for electrical Surges. It meets IS 61000 for Flicker free operation IEC 62471 for PHOTO BIOLOGICAL SAFETY.
Total Harmonic Distortion (THD) < 10%
Operating Temp. Range -4°C To +65°C
Operating Voltage 24 V DC (18 To 30 V DC)
Operation

1. Power On.

2. Mode Selector, Flashing or Steady.
Enclosure Die cast Aluminum with Clear toughed Glass, Dust & water tightness to IP-65
Weight of the lamp 1 KG
Dimension(L x W x H) 235 X 177 X 100 all in mm

Features

Economical

Highly Energy Efficient

Direction Beam

It Generates Directional IR Light Beam

Life

+70,000 Hrs.

Ease of Use

Instant Start, Light Weight, Portable type
