Overview

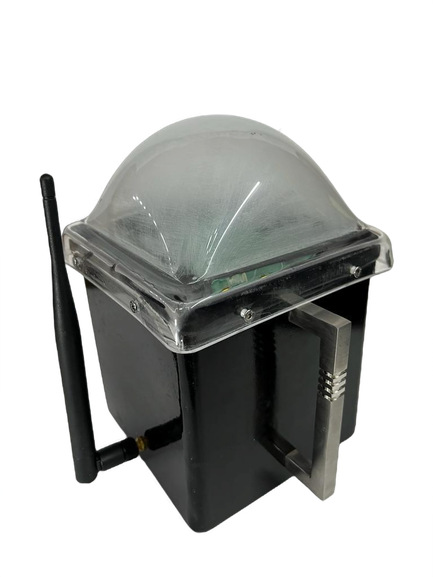

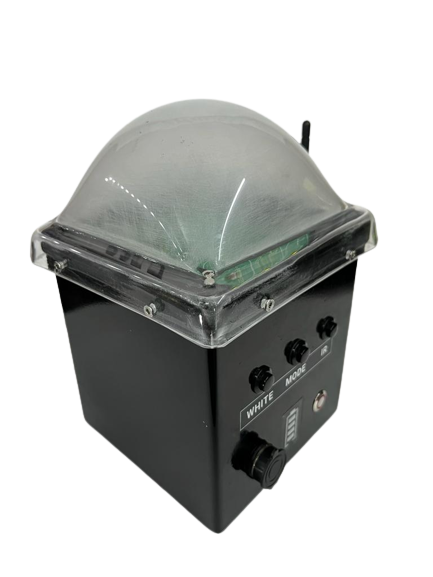

Full capability NVG light sare based on LED technology. It consists of cluster of ultra-POWER IR LEDs and Visible LEDs with specially designed optic & Li-ion battery and charger unit.

The lamp is free standing type and can be grouted or bolted for permanent installations, depending upon the application. Its aerodynamic design provides the required stability to avoid toppling due to wind thrust.

Technical specification

Download Specification
Model Number NVG Helipad Light M1
Enclosure Dust water tight enclosure made from Cold rolled steel & coated with corrosion resistant PU coat in Aviation Yellow colorwith UV stabilised PC cover.
Spectrum of Light IR 830 – 940 Nm White – 630 Nm
Mode of operation Steady/Flashing
Operating Voltage 12 V DC
Battery 11.1V, Rechargeable, Li-ion Life :- 1 year
Visibility 6 Km.in straight direction at night time.
Intensity at Lens surface 500mw / Sr. Integrated over 360 Degrees
Charger Unit I/P - 230V ( 15%) AC O/P- 8.4 V, 500 Ma
Weight of lamp unity Approx. 3.5 Kg. (Including Battery)

Features

Rechargeable, I/P - 230V (+15%)ACO/P-8.4 V, 500 Ma

Battery

Source of Light

Cluster of POWER IR & Visible White LEDs with specially designed optics

Weight of lamp

3.5 Kg.

Time of Operation

Upto 09 Hrs
